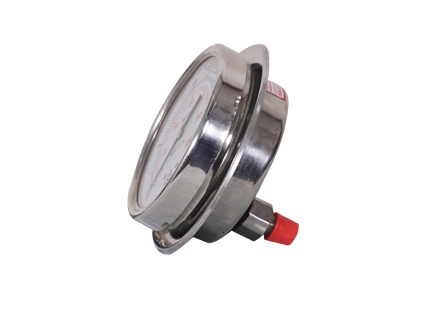

BOURDON OPERATED PRESSURE GAUGE (INDUSTRIAL TYPE)

Ref. Standard: IS 3624
Dial Size: 100, 150, 250 MM
Accuracy: ± 1%
Sensing Element: Bourdon Tube (SS 316L)
Connection Material: SS 316
Gear Mechanism: SS 304
Case : SS 304 with Bayonet Bezel as a standard (SS 316 Optional) & Die cast Aluminum
Protection: Weatherproof to IP-67 (IS/IEC 60947 Part I)
Process Connection: 1/4", 3/8", 1/2", BSP & NPT Male, M 20 X 1.5
Dial: Aluminum white background with black letters
Pointer: Micrometer zero adjustable (Black aluminum)
Window: Plain / Toughened / Shatter proof glass
Mounting: Direct Bottom / Back entry / Surface with Bottom entry / Panel Back entry
Blow out disc: Provided
Suitalbility: -20 Deg C to +60 Deg C (Service Temperature)
Over range: 130% (FSD)
Optional: Glycerine Filled, Electric Contact
Accessories: Syphon, Gauge cock, Snubber, Needle valve, 2 way manifold.
