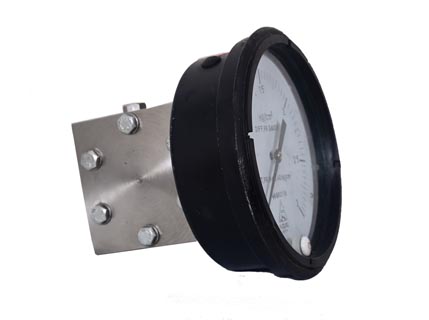

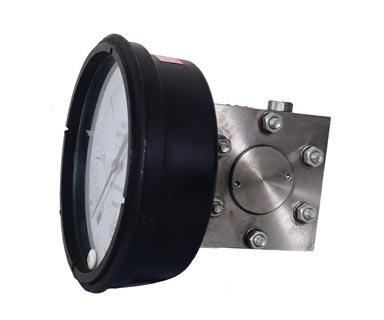

DIFFERENTIAL PRESSURE GUAGE

Ref. Standard: IS 3624
Dial Size: 150 mm
Accuracy: ± 1.5%
Sensing Element: Diaphragm SS 316/Alloy Steel
Gear Mechanism: SS 304
Case : Die cast aluminum & SS 304 with Bayonet Bezel as a standard
Protection: Weatherproof to IP-67 (IS/IEC 60947 Part I)
Chamber: SS 304
Process Connection: 1/4" NPT (F) (1/2. BSP & NPT Male. M 20 X 1.5 through adopter)
Dial: Aluminum white background with black letters
Pointer: Micrometer zero adjustable (Black aluminum)
Window: Acrylic / Shatterproof Glass
Mounting: Direct with Bottom & Back entry
Suitability: -20 Deg C to +60 Deg C (Service Temperature)
Over range: 130% (FSD)
Optional: Electric Contact.
Accessories: 3Way / 5 Way Manifold
