U TYPE “PIGTAIL TYPE SYPHON

  • A pressure gauge Siphon is a simple device used to protect a pressure sensor from high-temperature media, such as steam. It can also be used to reduce the potentially damaging effects of rapid pressure changes.
  • Material: SS 304. SS 316
  • Process Connection: 3/8", 1/2" BSP" NPT (Male X Female)

2 WAY & 3 WAY GAUGE COCK

  • 2 Way Gauge Cock provides isolation of the instrument. In 3 Way Gauge Cock there is provision for isolation as well as vent (drain).
  • Material: SS 304, SS 316
  • Process Connection: 3/8" , 1/2" BSP .. NPT (Male / Female)

SNUBBER! DAMPER

  • A pressure gauge snubber is a device used to suppress ("snub") excess force or rapid movement in mechanical systems. It's action provides more accurate pressure indication and extends the life and calibration of the pressure gauge. Pressure snubbers are designed to dampen the effect of pressure pulses and spikes to assure longer service life and eadability of pressure gauges in harsh applications
  • Material: SS 304, SS 316
  • Process Connection: 1/4", 3/8", 1/2"BSP .. NPT (Male X Female)

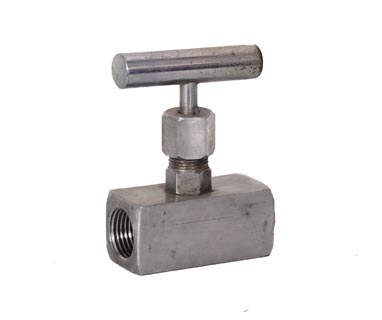

NEEDLE VALVE

  • A needle valve is used to accurately control flow rates of clean gasses or liquids. These valves generally have low flow rates and a relatively significant pressure drop from the inlet to the outlet. Needle valves are used to regulate the pressure inside a device. It helps to ensure that the appliance is running at maximum efficiency. without excess water or gas being used.
  • Material: SS 304, SS 316
  • Process Connection: 3/8", 1/2" BSP .. NPT (Male / Female)

THERMOWELL

  • A thermowell is a pressure-tight vessel that safeguards and increases the lifespan of temperature sensors in processing. A thermowell is installed directly into piping systems.
  • Material: SS 304, SS 316
  • Process Connection: 3/8" , 1/2" BSP .. NPT (Male / Female)

2 WAY /3 WAY /5 WAY MANIFOLD VALVE

  • The purpose of an instrumentation manifold for pressure gauges is to block the process flow in the system so that the process media (upstream and downstream) can be isolated from the instrumentation. The procedure is to close the block valve and open the drain valve. 2 Way Manifold Valve For Pressure Gauge is also known as the block and bleed valve. 3 Way Manifold Valve is one such type that is used to confirm that the block is not over ranged. It has 2 block valves and one drain valve. 5-VaIve Manifold can be mounted to differential pressure gauges. This manifold features two isolation valves, two equalizing valves, and a bleed
  • Material: SS 304, SS 316
  • Process Connection: 1/2" NPT Female X Female or , X1/4" Female
